RFS BD210WLP — Дегидратор / система осушки
Дегидратор / система осушки RFS Technologies / Amphenol · BD210WLP.
Ключевые характеристикиВсе характеристики
- Масса изделия
- 19 кг
Сохранить товар:
О товаре
Описание
RFS BD210WLP — Дегидратор / система осушки — Дегидратор / система осушки производства RFS Technologies / Amphenol.
Основные характеристики
- Масса изделия: 19 кг
Описание производителя
Оригинальный текст (EN). Перевод не выполнен.
Related Products PRODUCT DESCRIPTION The BD210WLP series of low pressure dehydrators may be used to pressurise broadcast antennas and transmission lines. Low pressure systems (suffix LP) are also used for applications where reduced pressure is required, for example, pressurisation of broadcast antenna radomes. The dehydrator removes the moisture from damp ambient air to deliver a reliable, constant, on-demand source of dry, pressurised air. The inherent reliability, compact size and remote real-time data capabilities make the BD210WLP series dehydrators an ideal choice for pressurisation of small or unattended sites. The BD210WLP Series dehydrators employ a fully digital operating platform offering the most accurate readings of operating variables, either from the front panel or by a remote connection.
Особенности и преимущества
- Air Delivery up to 200 SCFD (236L/h)
- Available in 110VAC, 220VAC and 48VDC (by an Optional Inverter) power supply

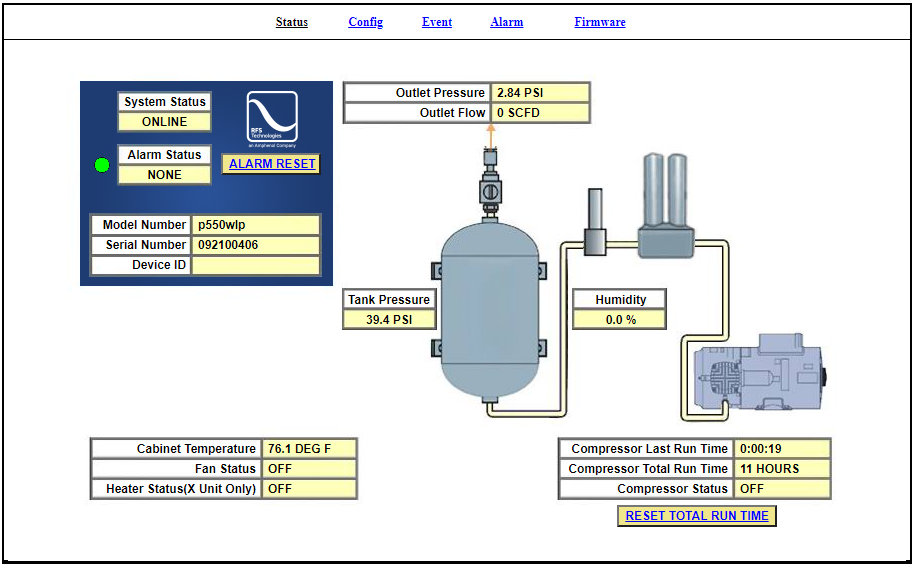

- Remote Real-time Data and Alarm Reset Capabilities
- Enhanced security, supports SNMP V3, HTTPS and user authentication login
- Digital Display of all Operating Parameters
- Compact & Lightweight
- Ultra Quiet Swing-Piston Compressor
- Versatile Mounting & Installation Options
- Operating pressure can be changed by a simple adjustment at the dehydrator
- Easy Slide Rail Mounting Kit Included (not with BD210WLP-V)
- Vertical Wall Mount Bracket Included with BD210WLP-V ONLY
- BD210WLP-ETL model is specially certified to meet CSA standards through additional testing and verification.
- Details
- Product Type
- Automatic Dehydrator
- Specifications
- BD210WLP / BD210WLP-V
- BD212W
- LP / BD212WLP-V
- Output Capacity
- l/hr (SCFD)
- 236 (200) @ 100% Duty Cycle
- Power Requirements
- 110 — 125 VAC, 50 / 60Hz
Иллюстрации и схемы производителя
Параметры
Технические характеристики
Механические параметры
- Масса изделия
- 19 кг
Основное
- Производитель
- RFS Technologies / Amphenol
- Бренд
- RFS
Файлы
Документы
BD210WLP datasheetd651e3dbd9c17150_6a2f409f0a606f__bd210wlp.pdfRFS Technologies Routing Guide 20252d0bc1499c3691c9_92869e846e6167__rfs-tech-routing-guide-feb112025.pdfBD210WLP Series User Guide60692b5fc7849b84_f38cd650fb8057__bd210wlp_userguide_100518832_rev_b.pdfDehydrator Sizing Reference Guiderfs-dehydrator-selection-tool_4.25.22.xlsx
