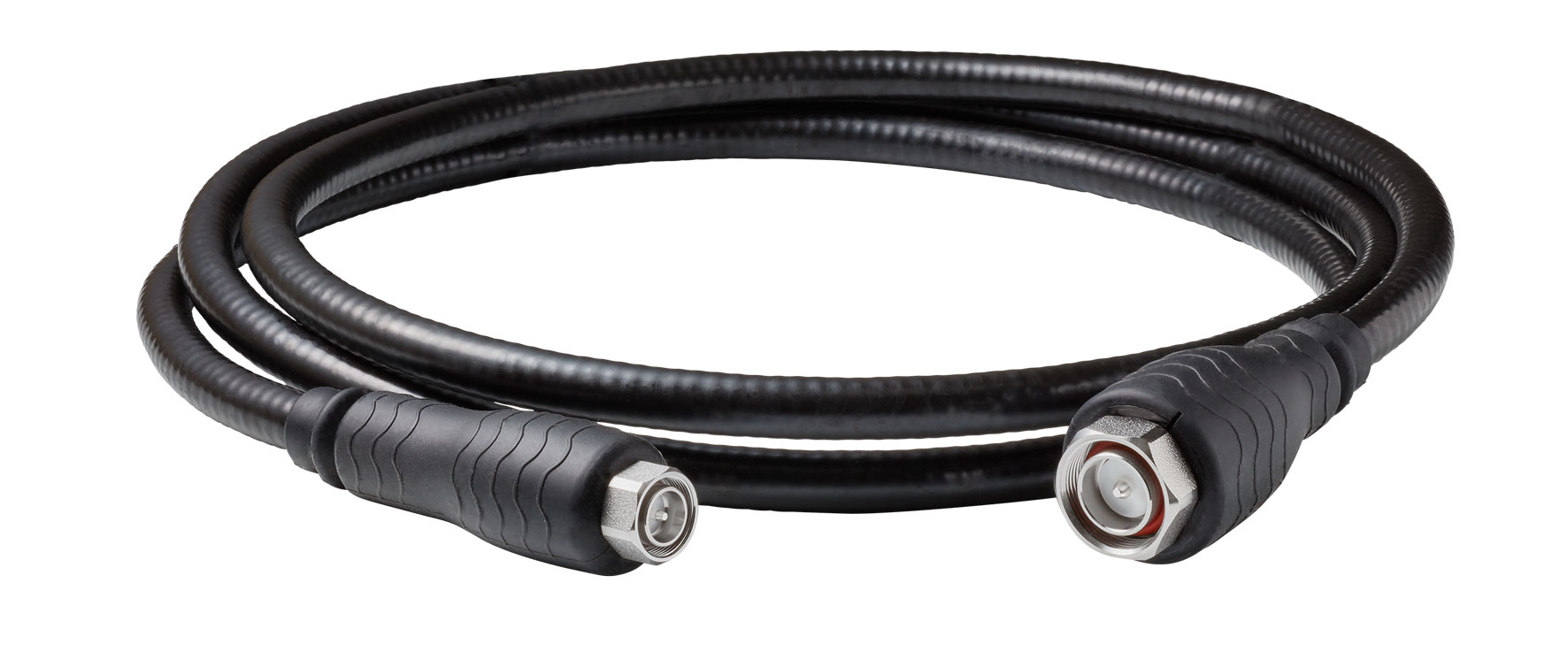

RFS JUMPER-L12-FFP — Кабельная сборка CELLFLEX Factory-Fit · Low Loss Foam · 1/2″
Кабельная сборка RFS Technologies / Amphenol · JUMPER-L12-FFP.
Ключевые характеристикиВсе характеристики
- Тип кабельной сборки
- Factory-Fit (Premium)
- Тип кабеля
- 1/2" Low Loss Foam
Сохранить товар:
О товаре
Описание
RFS JUMPER-L12-FFP — Кабельная сборка CELLFLEX Factory-Fit · Low Loss Foam · 1/2″ — Кабельная сборка производства RFS Technologies / Amphenol.
Основные характеристики
- Тип кабельной сборки: Factory-Fit (Premium)
- Тип кабеля: 1/2" Low Loss Foam
Описание производителя
Оригинальный текст (EN). Перевод не выполнен.
Radio Frequency Systems' CELLFLEX® Factory-Fit Jumpers feature specially designed connectors which are soldered-on in a strictly controlled industrial process to ensure industry leading performance for today's high-performance wireless systems. The connector design and manufacturing process has been optimized to produce premium VSWR and IM levels. Injection molded boots provide reliable and repeatable additional sealing level and strain relief. Our facilities produce and stock all popular lengths as required by the industry, and can deliver custom lengths with premium VSWR and IM levels on request.
Особенности и преимущества
- Stable premium VSWR, outstanding and consistent intermodulation performance — 4.3-10 side not relying on coupling torque
- Improves network performance, reduces the number of dropped calls and avoids revenue loss.
- Waterproof to IP 68
- No downtime risk, secures revenue.
- Smaller connector footprint for 4.3-10
- Enables tighter spacing of connections for antennas and RRHs.
- Available with standard ""J"" or flame retardant ""JFN"" jacket types
- Usable in all applications.
- Compliant to RoHS (EU) and CRoHS (China)
- Usable on a global basis.

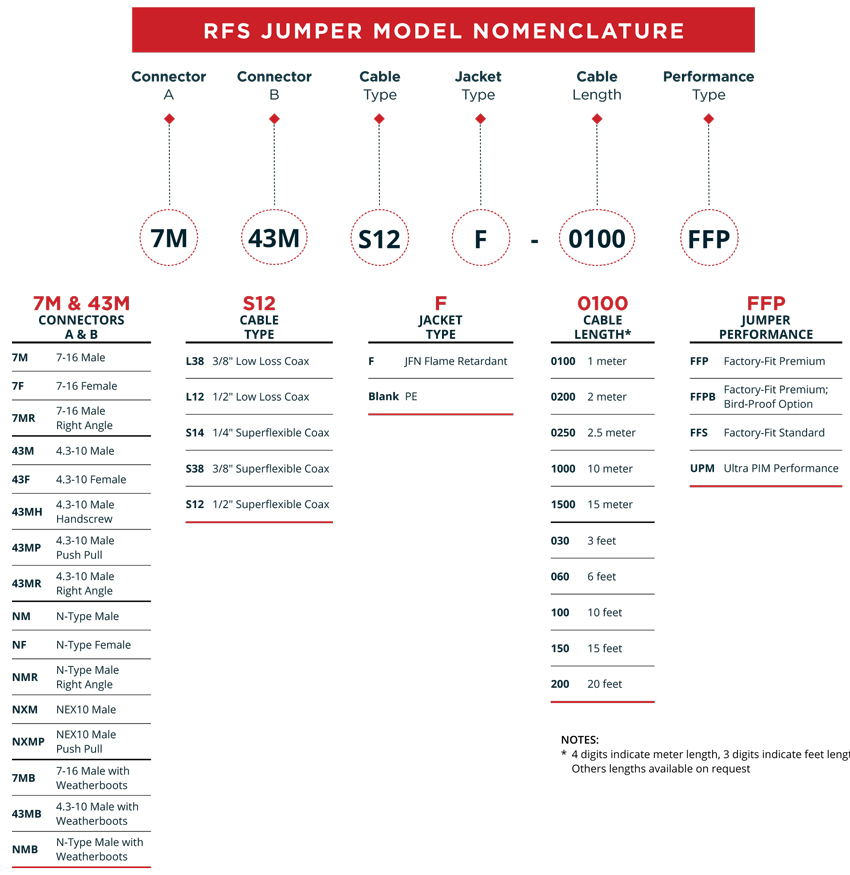

- 7MB43MBL12-0500FFP for EXAMPLE
Иллюстрации и схемы производителя
Параметры
Технические характеристики
Тип и назначение
- Тип кабеля
- 1/2" Low Loss Foam
- Тип кабельной сборки
- Factory-Fit (Premium)
Материалы
- Материал диэлектрика
- Foam Polyethylene
- Материал уплотнения
- Silicone rubber
Конструкция
- Материал оболочки
- Black Polyethylene, Halogen-free acc. IEC 60754-1 and -2
Механические параметры
- Минимальный радиус изгиба
- 125 мм
Условия эксплуатации
- Степень защиты IP
- IP68
- Рабочий температурный диапазон
- -50 … 85 °C
Условия эксплуатации
- Температура монтажа
- -40 … 60 °C
- Температура хранения
- -70 … 85 °C
Электрические параметры
- PIM
- -159 dBc
- Пиковая мощность
- 8,1 кВт
- Пиковое ВЧ-напряжение
- 900 В
Основное
- Производитель
- RFS Technologies / Amphenol
- Бренд
- RFS
Рабочие данные
Частотные характеристики
Jumper VSWR
7 строк| Frequency [MHz] | Straight / Straight [dB] (VSWR) | Right Angle / Right Angle [dB] (VSWR) |
|---|---|---|
| 0 - 1000 | >28.3 (≤1.08) | >28.3 (≤1.08) |
| >1000-1700 | >28.3 (≤1.08) | >26.4 (≤1.10) |
| >1700-2200 | >28.3 (≤1.08) | >26.4 (≤1.10) |
| >2200-2700 | >26.4 (≤1.10) | >24.9 (≤1.12) |
| >2700-3800 | >23.1 (≤1.15) | >20.8 (≤1.20) |
| >3800-5000 | >20.8 (≤1.20) | >19.1 (≤1.25) |
| >5000-6000 | >17.7 (≤1.30) | >17.7 (≤1.30) |
Jumper VSWR 10 - 20 m
7 строк| Frequency [MHz] | Straight / Straight [dB] (VSWR) | Right Angle / Right Angle [dB] (VSWR) |
|---|---|---|
| 0 - 1000 | >28.3 (≤1.08) | >28.3 (≤1.08) |
| >1000-1700 | >26.4 (≤1.10) | >24.0 (≤1.14) |
| >1700-2200 | >26.4 (≤1.10) | >24.0 (≤1.14) |
| >2200-2700 | >24.9 (≤1.12) | >24.0 (≤1.14) |
| >2700-3800 | >23.1 (≤1.15) | >19.1 (≤1.25) |
| >3800-5000 | >19.1 (≤1.25) | >18.2 (≤1.28) |
| >5000-6000 | >17.7 (≤1.30) | >16.0 (≤1.38) |
Combinations
48 строк| Model Name | Connector 1 | Connector 2 |
|---|---|---|
| 7M7ML12-XXXXFFP | 7-16 Male | 7-16 Male |
| 7M7FL12-XXXXFFP | 7-16 Male | 7-16 Female |
| 7M7MRL12-XXXXFFP | 7-16 Male | 7-16 Male Right Angle |
| 7M43ML12-XXXXFFP | 7-16 Male | 4.3-10 Male |
| 7M43FL12-XXXXFFP | 7-16 Male | 4.3-10 Female |
| 7M43MRL12-XXXXFFP | 7-16 Male | 4.3-10 Male Right Angle |
| 7MNML12-XXXXFFP | 7-16 Male | N-Male |
| 7MNFL12-XXXXFFP | 7-16 Male | N-Female |
| 7F7FL12-XXXXFFP | 7-16 Female | 7-16 Female |
| 7F7MRL12-XXXXFFP | 7-16 Female | 7-16 Male Right Angle |
| 7F43ML12-XXXXFFP | 7-16 Female | 4.3-10 Male |
| 7F43FL12-XXXXFFP | 7-16 Female | 4.3-10 Female |
| 7F43MRL12-XXXXFFP | 7-16 Female | 4.3-10 Male Right Angle |
| 7FNML12-XXXXFFP | 7-16 Female | N-Male |
| 7FNFL12-XXXXFFP | 7-16 Female | N-Female |
| 7MR7MRL12-XXXXFFP | 7-16 Male Right Angle | 7-16 Male Right Angle |
| 7MR43ML12-XXXXFFP | 7-16 Male Right Angle | 4.3-10 Male |
| 7MR43FL12-XXXXFFP | 7-16 Male Right Angle | 4.3-10 Female |
| 7MR43MRL12-XXXXFFP | 7-16 Male Right Angle | 4.3-10 Male Right Angle |
| 7MRNML12-XXXXFFP | 7-16 Male Right Angle | N-Male |
| 7MRNFL12-XXXXFFP | 7-16 Male Right Angle | N-Female |
| 43M43ML12-XXXXFFP | 4.3-10 Male | 4.3-10 Male |
| 43M43FL12-XXXXFFP | 4.3-10 Male | 4.3-10 Female |
| 43M43MRL12-XXXXFFP | 4.3-10 Male | 4.3-10 Male Right Angle |
| 43MNML12-XXXXFFP | 4.3-10 Male | N-Male |
| 43MNFL12-XXXXFFP | 4.3-10 Male | N-Female |
| 43F43FL12-XXXXFFP | 4.3-10 Female | 4.3-10 Female |
| 43F43MRL12-XXXXFFP | 4.3-10 Female | 4.3-10 Male Right Angle |
| 43FNML12-XXXXFFP | 4.3-10 Female | N-Male |
| 43FNFL12-XXXXFFP | 4.3-10 Female | N-Female |
| 43MR43MRL12-XXXXFFP | 4.3-10 Male Right Angle | 4.3-10 Male Right Angle |
| 43MRNML12-XXXXFFP | 4.3-10 Male Right Angle | N-Male |
| 43MRNFL12-XXXXFFP | 4.3-10 Male Right Angle | N-Female |
| NMNML12-XXXXFFP | N-Male | N-Male |
| NMNFL12-XXXXFFP | N-Male | N-Female |
| NFNFL12-XXXXFFP | N-Female | N-Female |
| 43FNXML12-XXXXFFP | 4.3-10 Female | NEX10 Male |
| 43MNXML12-XXXXFFP | 4.3-10 Male | NEX10 Male |
| 43MRNXML12-XXXXFFP | 4.3-10 Male Right Angle | NEX10 Male |
| 7FNXML12-XXXXFFP | 7-16 Female | NEX10 Male |
| 7MNXML12-XXXXFFP | 7-16 Male | NEX10 Male |
| 7MRNXML12-XXXXFFP | 7-16 Male Right Angle | NEX10 Male |
| NFNXML12-XXXXFFP | N-Female | NEX10 Male |
| NMNXML12-XXXXFFP | N-Male | NEX10 Male |
| XXXX in the model name is the length; as well for jumper with boots acc. to nomenclature | (Boot examples below) | (Boot examples below) |
| 43MB43MBL12-XXXXFFP | 4.3-10 Male + Boot | 4.3-10 Male + Boot |
| 7MB7MBL12-XXXXFFP | 7-16 Male + Boot | 7-16 Male + Boot |
| NMBNMBL12-XXXXFFP | N-Male + Boot | N-Male + Boot |
