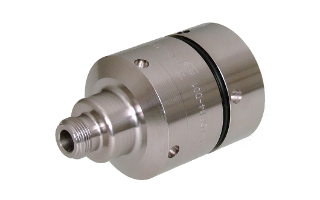

RFS NF-LCF114-D01 — Радиочастотный соединитель 1-1/4″ · N

RFS NF-LCF114-D01 — Радиочастотный соединитель 1-1/4″ · N — изображение 2

RFS NF-LCF114-D01 — Радиочастотный соединитель 1-1/4″ · N

Кабельная группа: G33 (1-1/4»R)
Разъем N розетка OMNI FIT Premium D01 версия,на кабель (1 1/4″R).

Ключевые характеристикиВсе характеристики

Интерфейс соединителя: N

Вид соединителя: Female

Тип соединителя: OMNI FIT™ PREMIUM Straight

Волновое сопротивление: 50 Ом

Максимальная рабочая частота: 3,6 ГГц

Запросить цену

Сохранить товар:

О товаре

Описание

Разъем NF-LCF114-D01 розетка (female) прямая предназначена для гофрированных кабелей размера 1 1/4″R. При установке разъема на кабель может использоваться как стандартный так и специальный инструмент. Подходит для всех производителей кабеля группы 1 1/4″R.

Описание производителя

Оригинальный текст (EN). Перевод не выполнен.

Related Products OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS Technologies connectors are fully tested for mechanical and electrical compliance to industry specifications. The N connector meets all technical requirements and covers high frequencies as well as legacy applications. Sealing against outer conductor and jacket by means of O-Ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

Особенности и преимущества

Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
Two-piece design i.e. visual inspection of interlocking leads to improved installation security
OMNI FIT™ concept i.e. streamlined order management and reduced stock level
Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
OMNI FIT™ Premium Connectors
